Metal bellows and
flexible metal hoses
Aerospace

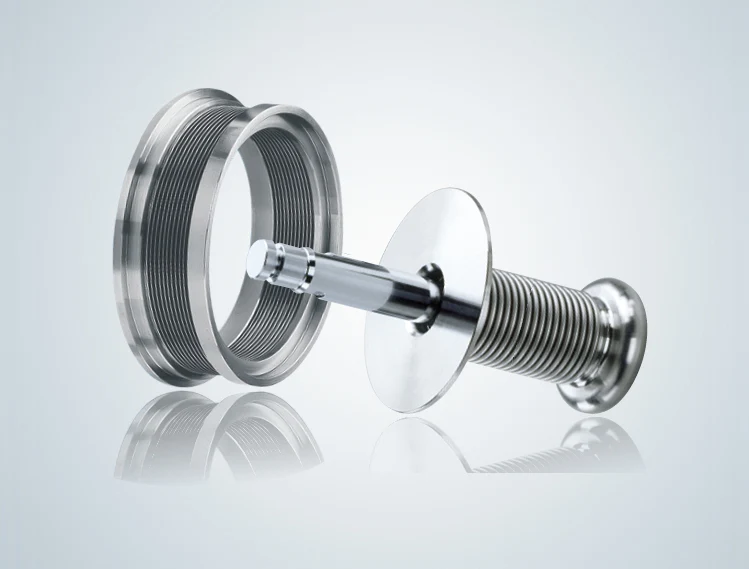

Corrugated bellows combine higher pressure resistance with low spring rates and optimised expansion capacity. Small size steps for ideal interfacing from DN 2 to DN 100 and beyond, as well as from special materials (e.g. IN718 or Ti 15-3-3-3-3-3).

• multi-plied designs for high flexibility with maximum pressure resistance
• alternative designs/combinations (e.g. formed, edge welded, with / without braiding, coaxial)
• diaphragm bellows with very high elasticity and low spring rates

Characteristics:

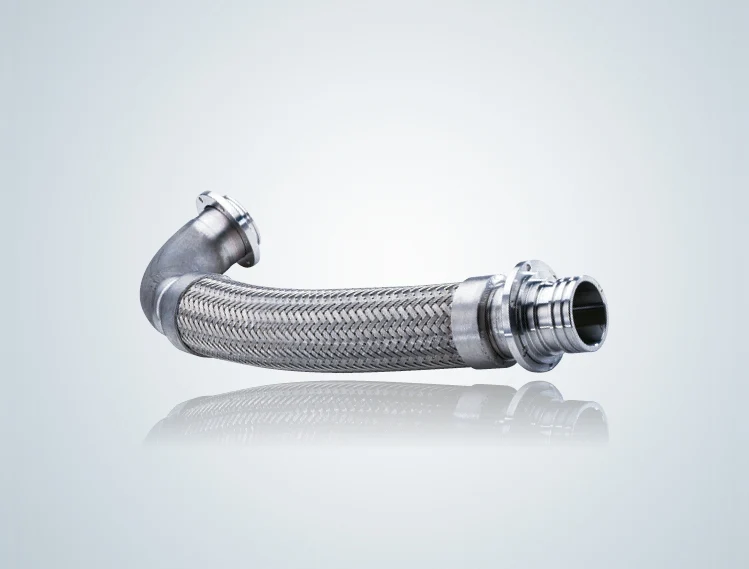

• small size steps for an ideal connection from DN 6 to DN 300
• various types of hoses developed for special applications with individual end-fittings according to customer specifications
• highly flexible version available
• various hose profiles offer a specific performance according to customer specifications
• inconel versions for high-temperature applications available
