Solutions for industrial applications

The Witzenmann Group is one of the world's leading manufacturers of flexible metallic elements such as flexible metal hoses, expansion joints, metal bellows and pipe supports. We are at home in all important industrial markets - in plant engineering and construction, in pipeline construction, device construction, mechanical engineering, in power plants and many other speciality markets.

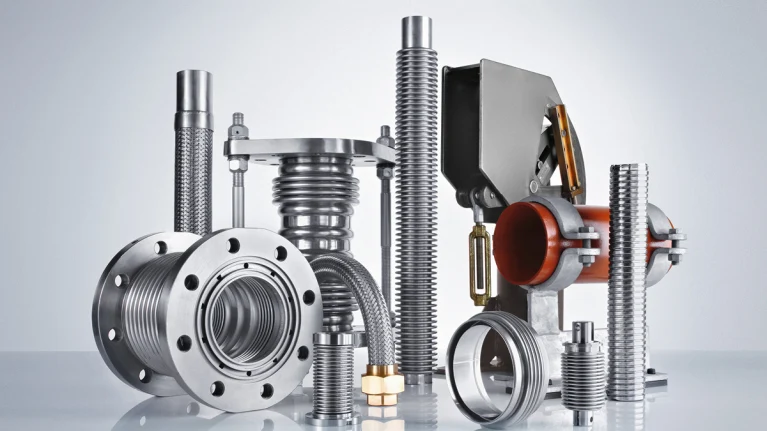

Complete industrial product range

Engineering partner

Our engineering supports the customer in every phase. Starting with the first customer contact, finding the solution right up to installing the flexible component. This commitment has made us the leader in technology and service in our industry worldwide.

Design and Calculation

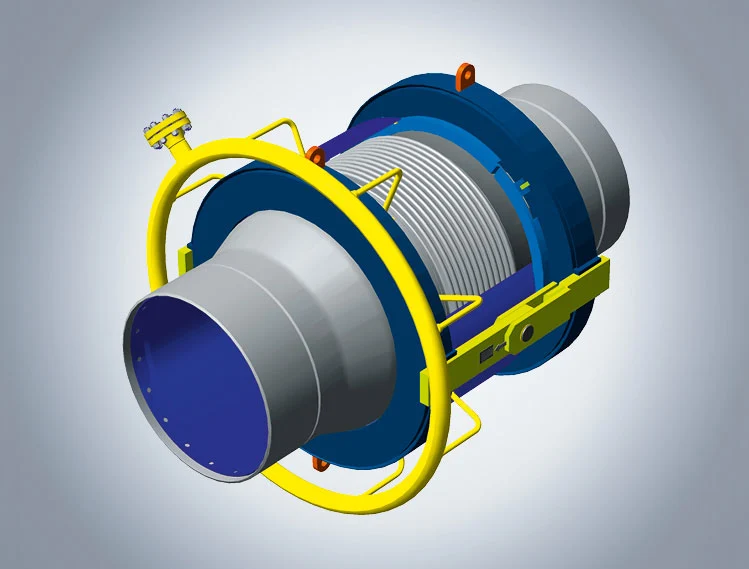

Using FEM programs such as Patran, Nastran and Marc, we create FE models as early as the design phase. For static and dynamic analyses. From hanger and pipe clamp to expansion joint or flexible metal hose. Thus, the components can be included in calculations with all requisite properties and without additional effort.

Flexperte Laptop Screen Image Text

Engineering

Our entire engineering knowledge has been packed into our design program. This includes durability verification in accordance with the Pressure Equipment Directive, ASME and EJMA as well as our product configurator FLEXPERTE.

Engineeringpartner CAD Image Text

Product Tests

Witzenmann has modern testing technologies such as

  • x-ray and ultrasonic tests (CTR)
  • electron beam microanalysis (EDX)
  • helium leak test
  • test rigs for load cycle tests under operating conditions
Engineeringpartner product testing Product Teaserslider

Welding

We have all the necessary procedures, appropriately qualified welders and the approvals required:

  • WIG, Microplasma, MIG/MAG, UP, E-Hand
  • Laser welding (solid laser, CO2 laser, and diode laser)
  • Resistance welding (spot-welding, seam, and projection welding)
  • Brazing (induction / furnace brazing)
Engineeringpartner Welding Image Text

Materials

In our materials laboratory, we study the suitability of materials for specific application cases. For this purpose, a broad range of experimental and testing ordinances are available to us, such as:

  • Weld seam testing (non-destructive, destructive)
  • Heat treatment of materials (hot and cold test rigs)
Engineering Materials Image Text

Production

The Witzenmann Group has production sites worldwide. The most modern production methods and our production network form the basis for rapid and economical manufacturing.

Our core competencies include:

  • Cutting, reshaping and welding thin-walled materials
  • Working with nickel-based alloys
Bellows Press Image Text

Service

For complex components, where very high safety requirements apply or difficult installation conditions exist, we are also there on site. With engineering expertise, from the installation to starting up the system.

After Sales Service Image Text

Facts & Figures

12 m
the dimensions of the largest expansion joint we ever produced
1920
Emil Witzenmann invented the expansion joint
1000 bar
is the highest pressure for which we have ever manufactured bellows
3.5 mm
is the diameter of our smallest precision bellows

Multi-ply: extreme flexibility, short overall length

MultiPly Image Text

In the multi-play bellows design, the pressure-bearing overall wall is divided into several thin individual layers. This has advantages:

  • greater movement absorption: Dividing the wall thickness into several individual layers makes the bellows more flexible and quick to construct.
  • operating efficiency: It is possible to construct only the inner layer, which is in contact with the medium, from high-quality material.
  • safety: a leakage indicator can display damage to the fluid-conveying inner layer; the expansion joint remains functional, however.

Approvals

Industry overview of approvals Image Text

Witzenmann has the most important approvals and certifications for the plant and pipeline construction markets, for device construction, mechanical engineering, in power plants and many other special markets.

  • ISO 9001/2015
  • ABS
  • Bureau Veritas
  • DNV GL
  • Lloyd's Register
  • Rina
  • VDE
  • EJMA
  • FM
  • ASME
  • R-Stamp

There for you, worldwide

Witzenmann World Map Image Text
International Engineering, Local Production Worldwide

With 22 companies, the Witzenmann Group is represented worldwide in 17 countries.

Find out more about the Witzenmann Group

You may also be interested in

Witzenmann presents an IoT expansion joint study. Learn how you increase your plant's operating efficiency!

Learn more about Wizenmann's challenging projects and solutions!

Download important certificates in our Download Center!

Additional questions

Configure products

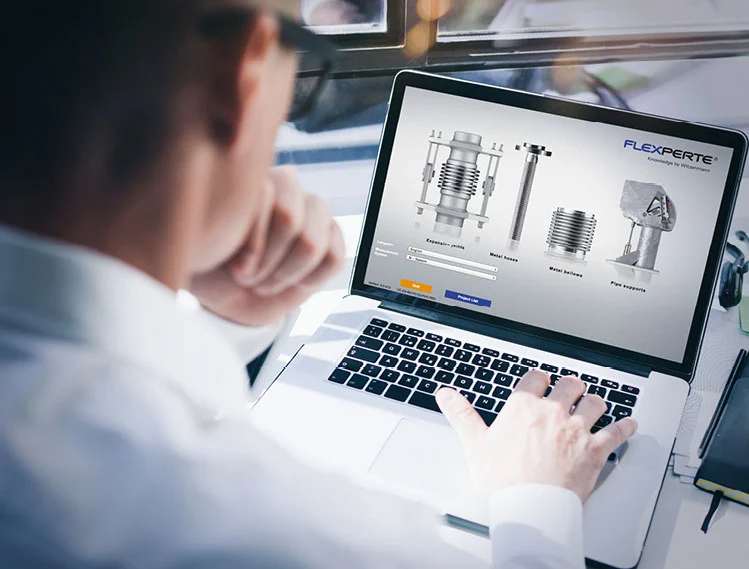

Use our FLEXPERTE tool to configure products, quickly and easily, to meet your individual requirements.

Details:

  • Design of standard products
  • Creation of data sheets
  • Preparation of Enquiries

Download: FLEXPERTE customer version

FLEXPERTE: The design program for the Witzenmann Group's entire product range with function-specific subdivisions

  • Flexible metal hoses
  • Expansion joints
  • Metal bellows
  • Bearings, hangers, supports

Drawing data, including complete 3D CAD drawings, is stored alongside the calculation formulae. With PDS and PDMS interfaces, the program is versatile and universally usable.

Additional questions

Nothing beats direct contact. We are happy to take the time for a personal discussion with you to answer your questions on an individual basis.
Please send us an inquiry using the contact form, and we will immediately get back to you.
